3CE1-BDZP2

Isuzu 3CE1 Power Unit Diesel Engine

Suits: Medium-duty fixed or variable-speed stationary and mobile applications

POA

Product Details

PRODUCT INFORMATION

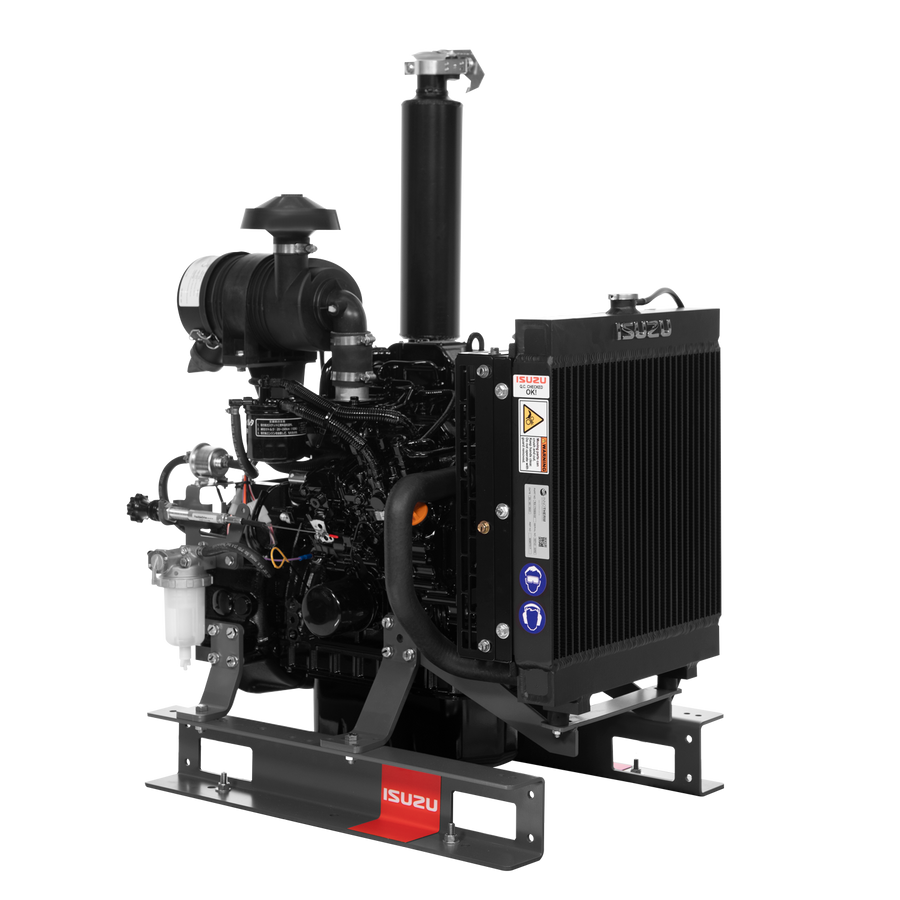

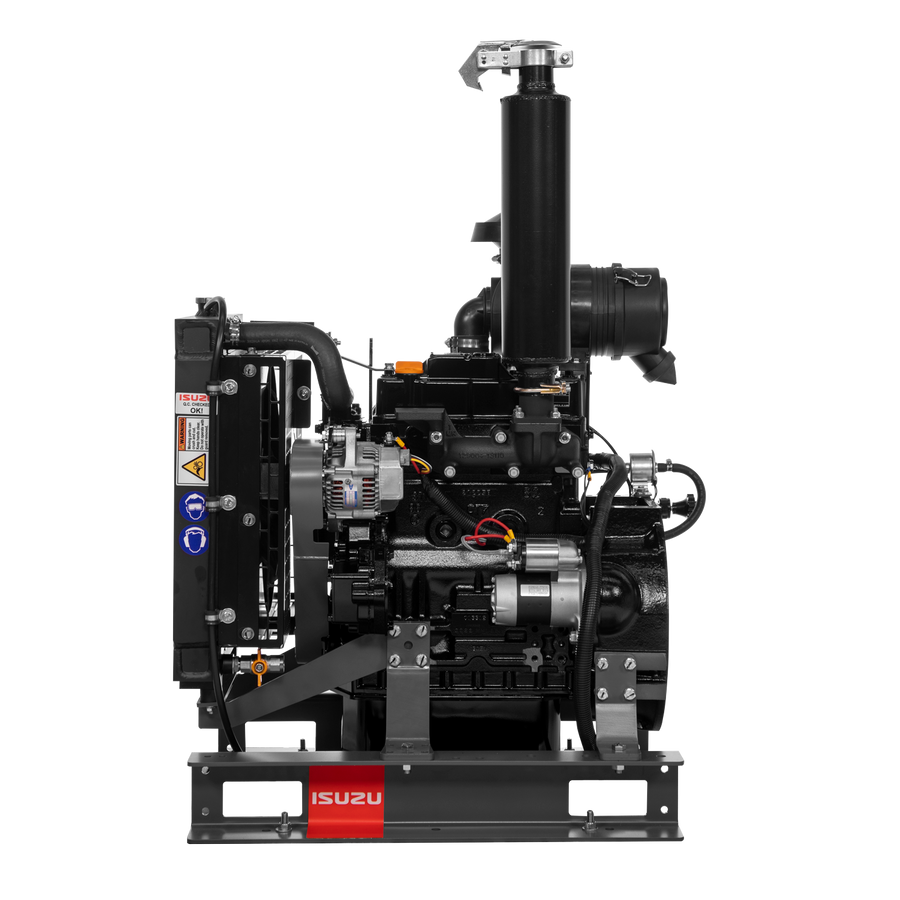

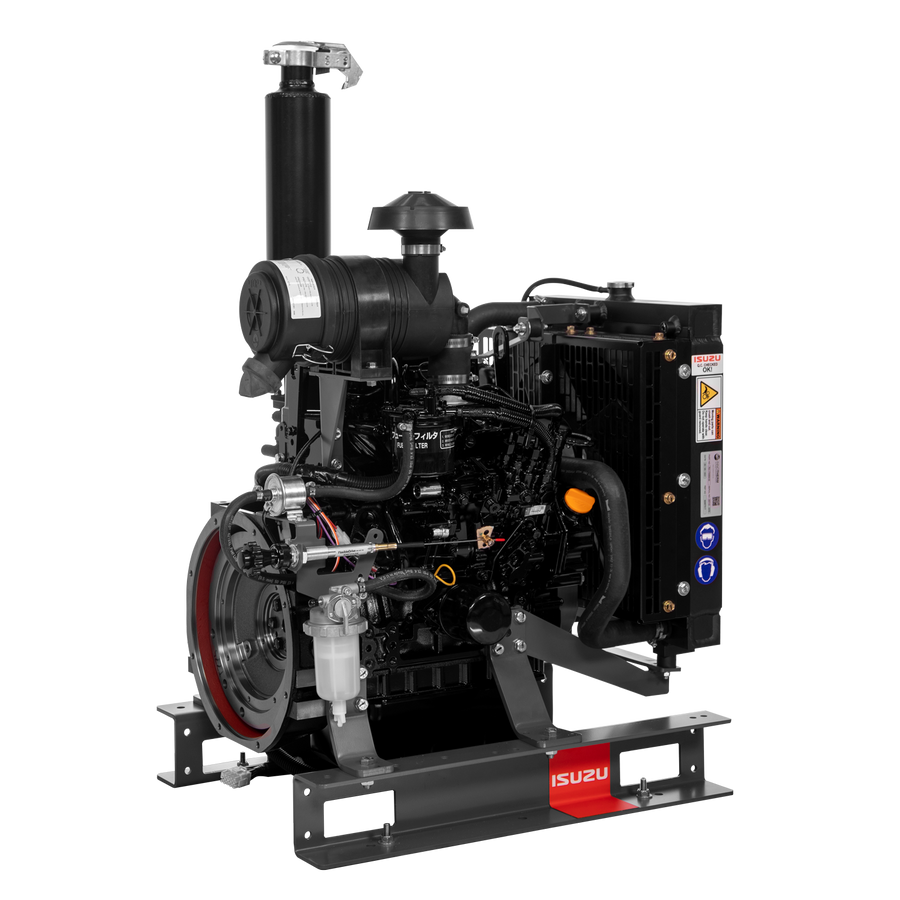

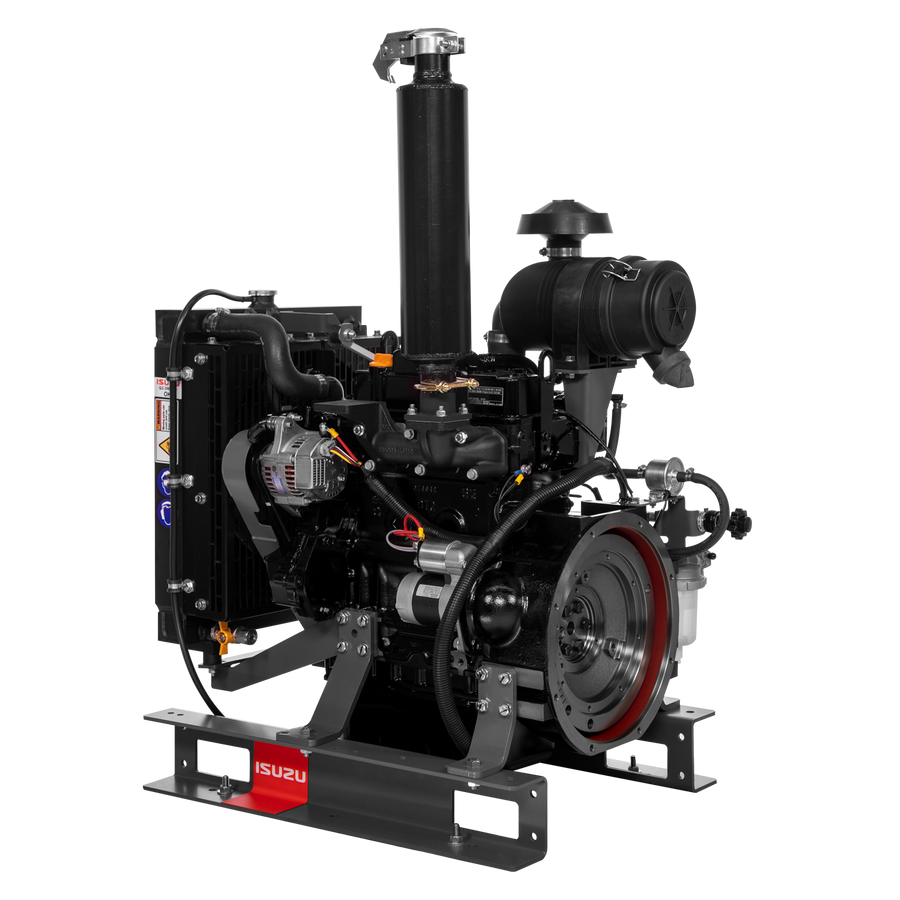

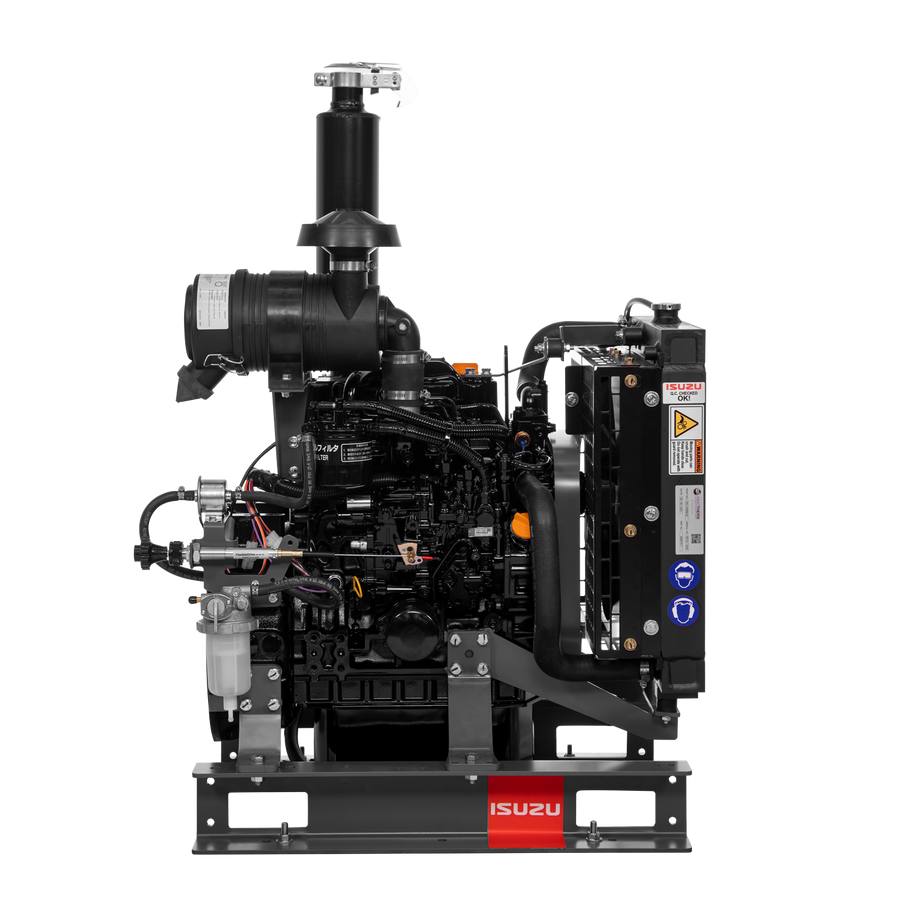

Isuzu 3CE1 Power Unit - High-Performance Diesel Engine for Industrial & Agricultural Applications

The Isuzu 3CE1 Power Unit is a powerful and efficient diesel engine designed for demanding light to medium industrial, agricultural, and commercial applications. With its larger displacement and higher torque output, it delivers strong, consistent performance for more intensive workloads.

Engineered with Isuzu’s proven reliability, the 3CE1 features a robust construction, fuel-efficient operation, and simple mechanical systems for ease of servicing. Its direct injection system enhances performance and efficiency, making it a dependable solution for operators requiring increased power and durability.

The 3CE1 is ideally suited for generators, irrigation systems, construction equipment, and heavy-duty machinery, where reliable power and efficiency are essential.

SPECIFICATIONS

Type: Vertical water-cooled 4-cycle Diesel
Model (Manufacturer): 3CE1-BDZP2 (Isuzu)
Emission Spec. Reference: Stage-IIIA
Max. Rated Output: 26.9 kW (36.1 hp) @ 3000 RPM
Continuous Output: 22.9 kW (30.7 hp) @ 3000 RPM
Max. Torque: 103 Nm @ 1800 RPM
Displacement: 1.642 L
Combustion System: Direct Injection (Naturally Aspirated)
O/A Dimensions: 611 (L) x 509 (W) x 682 mm (H)
Dry Weight: 165 kg
Fuel Consumption: 8.5* L/h @ 100% load
(*Based on diesel fuel with a specific gravity of 0.835 kg/m³ at 15°C. Actual value may vary.)

Key Benefits:

High Power & Torque Output: Larger displacement and strong torque delivery make the 3CE1 ideal for more demanding applications requiring reliable, continuous performance.
Efficient Direct Injection System: Direct injection improves combustion efficiency, delivering better fuel economy and power output.
Reliable Cooling Performance: Water-cooled system with heavy-duty aluminium radiator options ensures consistent operation in tough and high-temperature environments.
Durable & Service-Friendly Design: Simple mechanical systems support long service life, easy maintenance, and dependable operation in the field.
Flexible Configuration Options: Available in Starter (STR), Economy (ECY), and Premium (PRM) configurations with a wide range of PTO, mounting, and accessory options.
Advanced Monitoring & Protection: Optional Murphy controllers provide diagnostics, monitoring, and engine protection features for enhanced reliability and operational safety.

Typical Applications:
The Isuzu 3CE1 Power Unit is ideally suited for:

Portable and standby generators
Irrigation and high-capacity water pumps
Construction and civil machinery
Agricultural equipment
OEM and heavy-duty custom builds

For more information
Download full specifications and Power Unit configurations here

VEHICLE INFORMATION

N/A

DISCLAIMER

The Isuzu 3CE1 Power Unit is supplied as a standalone diesel engine and is intended for use in light to medium industrial, agricultural, and commercial applications. Specifications, compatibility, and performance may vary depending on installation, operating conditions, and supporting components.

It is the responsibility of the purchaser to ensure the engine is suitable for the intended application and is installed, operated, and maintained by qualified personnel in accordance with manufacturer guidelines and local regulations.

While every effort has been made to ensure the accuracy of product information, specifications are subject to change without notice. Images are for illustrative purposes only and may not represent the exact product supplied.

No liability is accepted for any damage, loss, or injury resulting from improper installation, use, or modification of this product.
