3CD1T-BKZP1

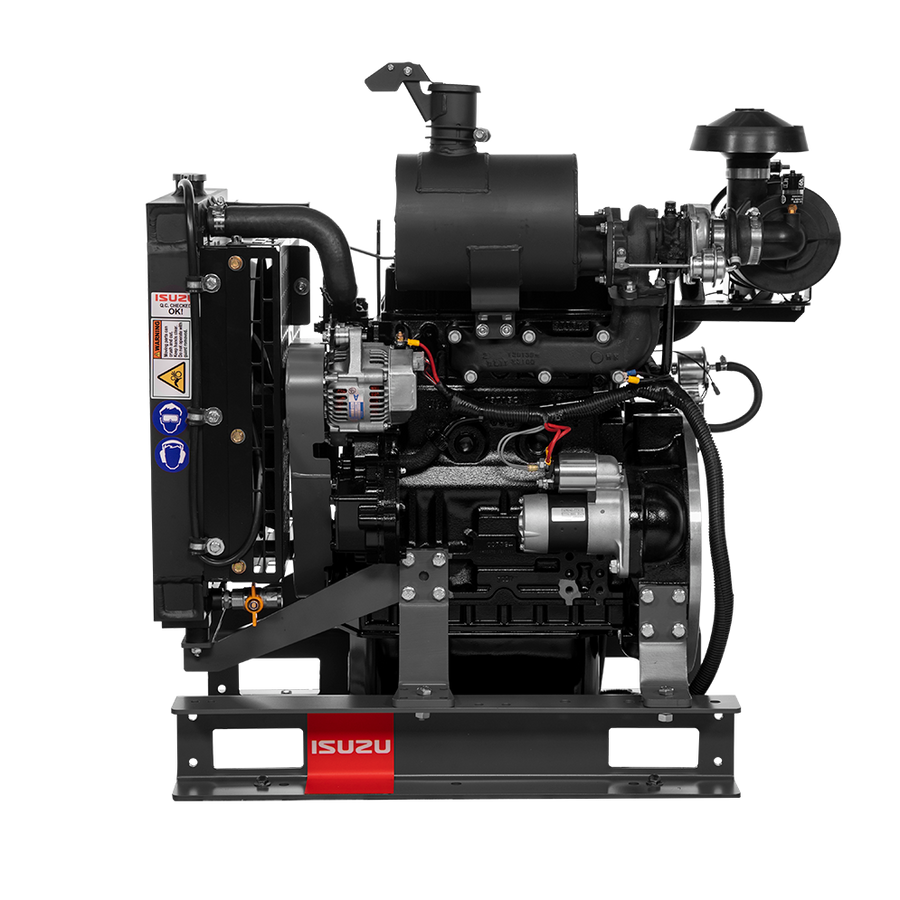

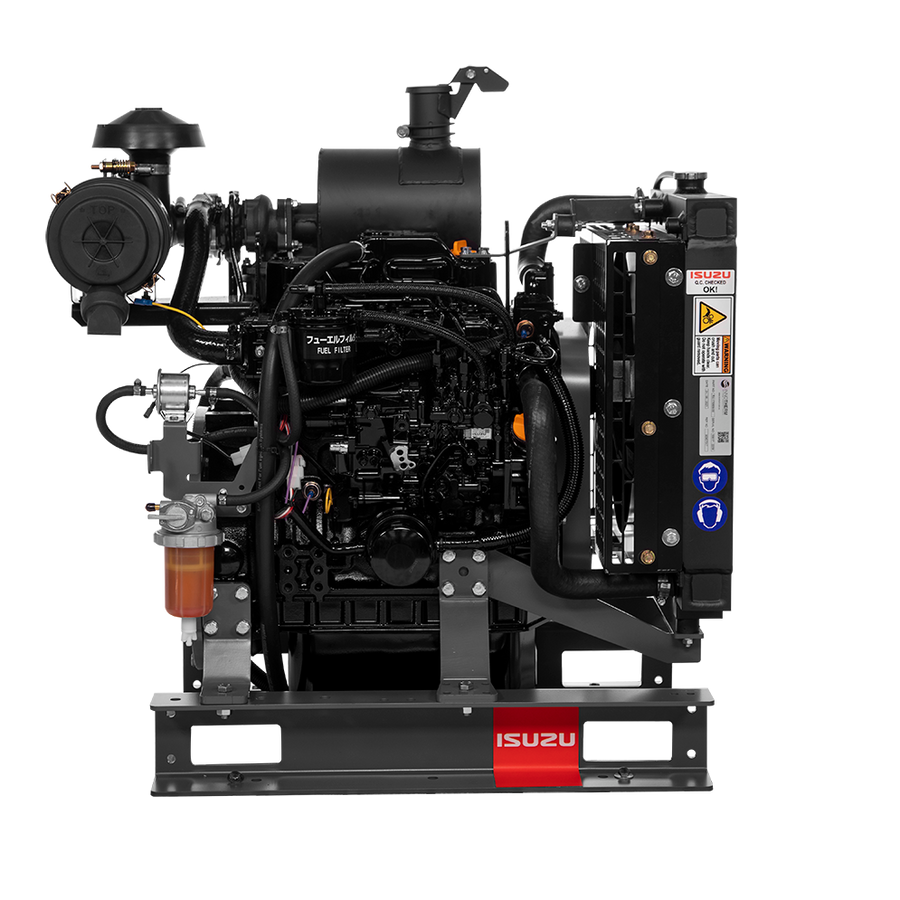

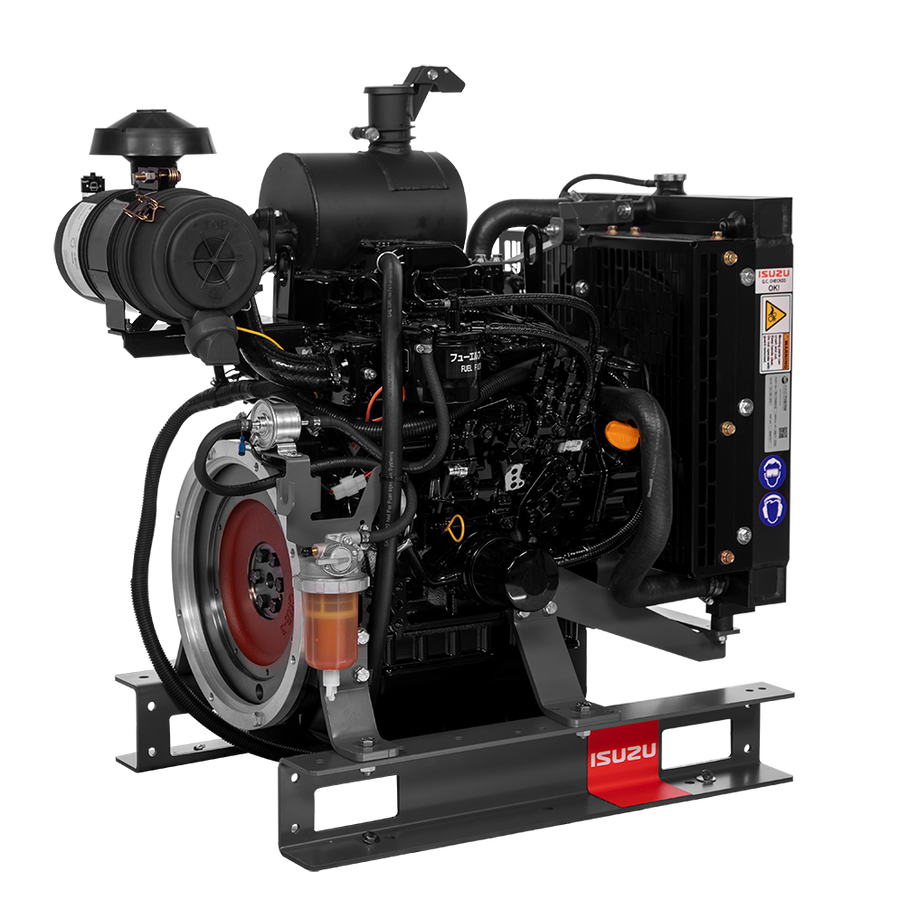

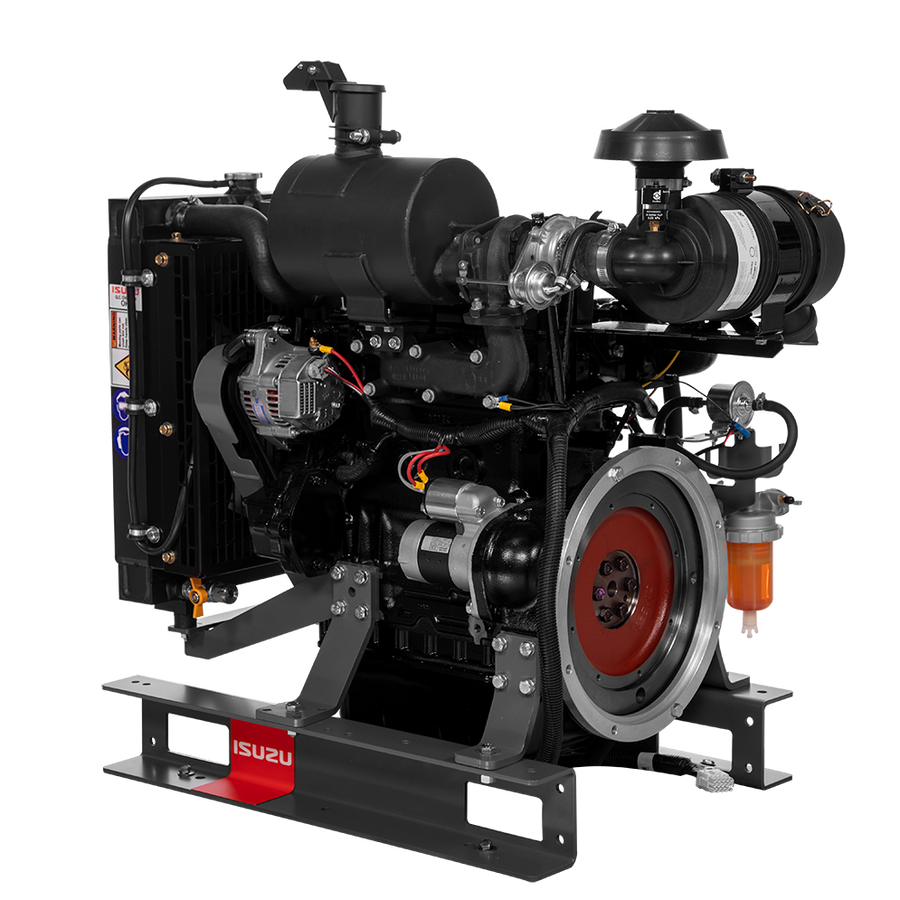

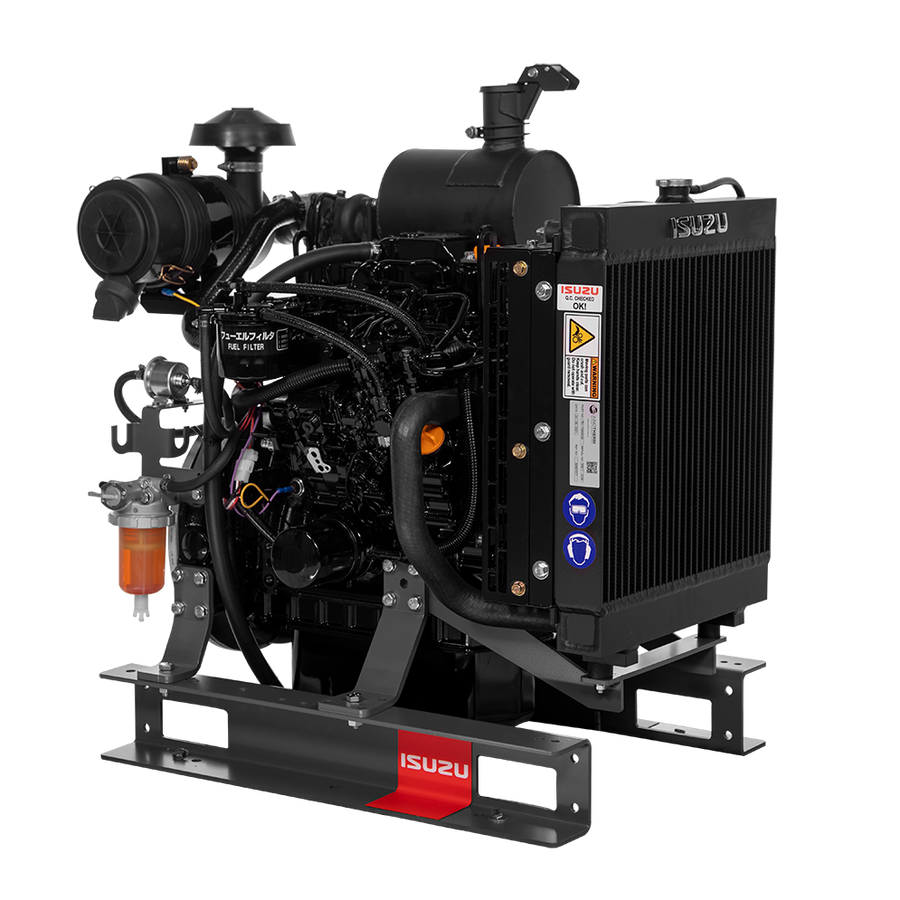

Isuzu 3CD1T Power Unit Diesel Engine

Suits: Fixed & variable-speed stationary or mobile applications

POA

Product Details

PRODUCT INFORMATION

Isuzu 3CD1T Power Unit - Reliable Diesel Engine for Industrial & Agricultural Use

The Isuzu 3CD1T Power Unit is a high-performance, fuel-efficient diesel engine built for demanding industrial, agricultural, and commercial applications. Renowned for its durability and reliability, this compact power unit delivers consistent power output and smooth operation, even in tough environments.

Designed with Isuzu’s trusted engineering, the 3CD1T engine offers excellent fuel economy, low maintenance requirements, and long service life - making it ideal for use in generators, water pumps, machinery, and custom equipment builds.

Whether you need a dependable engine for heavy-duty tasks or a cost-effective solution for your equipment, the Isuzu 3CD1T Power Unit delivers power you can rely on.

SPECIFICATIONS

Type: Vertical water-cooled 4-cycle Diesel
Model (Manufacturer): 3CD1T-BKZP1 (Isuzu)
Emission Spec. Reference: Interim Tier-4 / Stage-IIIA
Max. Rated Output: 29.1 kW (39.0hp) @ 2800 RPM
Continuous Output: 24.7 kW (33.2hp) @ 2800 RPM
Max. Torque: 119 Nm @ 1900 RPM
Displacement: 1.496 L
Combustion System: Direct Injection (Turbocharged)
O/A Dimensions: 613 (L) x 509 (W) x 756 mm (H)
Dry Weight: 157 kg
Fuel Consumption: 9.2* L/h @ 100% load
(*Based on diesel fuel with a specific gravity of 0.835 kg/m3 at 15°C. Actual value may vary)

Key Benefits:

Rugged, Heavy-Duty Design: Built with Australian-designed mounts, skid, and cooling components for tough conditions.
Reliable Cooling Performance: Advanced aluminium radiator and optional upgrades for high-temperature operation.
Smart Engine Control & Protection: ECO and PRO controllers offer monitoring, diagnostics, and engine safety features.
Flexible & Customisable Setup: Wide range of options for PTOs, controls, mounting, and application-specific needs.
Remote Monitoring Ready: Optional 4G connectivity for off-site control and performance tracking.
Easy Operation & Maintenance: User-friendly design with accessible components and service-friendly features

For more information
Download full specifications and Power Unit configurations here

VEHICLE INFORMATION

N/A

DISCLAIMER

The Isuzu 3CD1T Power Unit is sold as a standalone diesel engine and is intended for use in industrial, agricultural, and commercial applications. Specifications, compatibility, and performance may vary depending on installation, operating conditions, and supporting components.

It is the responsibility of the purchaser to ensure the engine is suitable for their intended application and is installed, operated, and maintained by qualified personnel in accordance with manufacturer guidelines and local regulations.

While all efforts are made to provide accurate product information, specifications may change without notice. Images are for illustrative purposes only and may not represent the exact product supplied.

No liability is accepted for damage, loss, or injury resulting from improper use, installation, or modification of this product.
