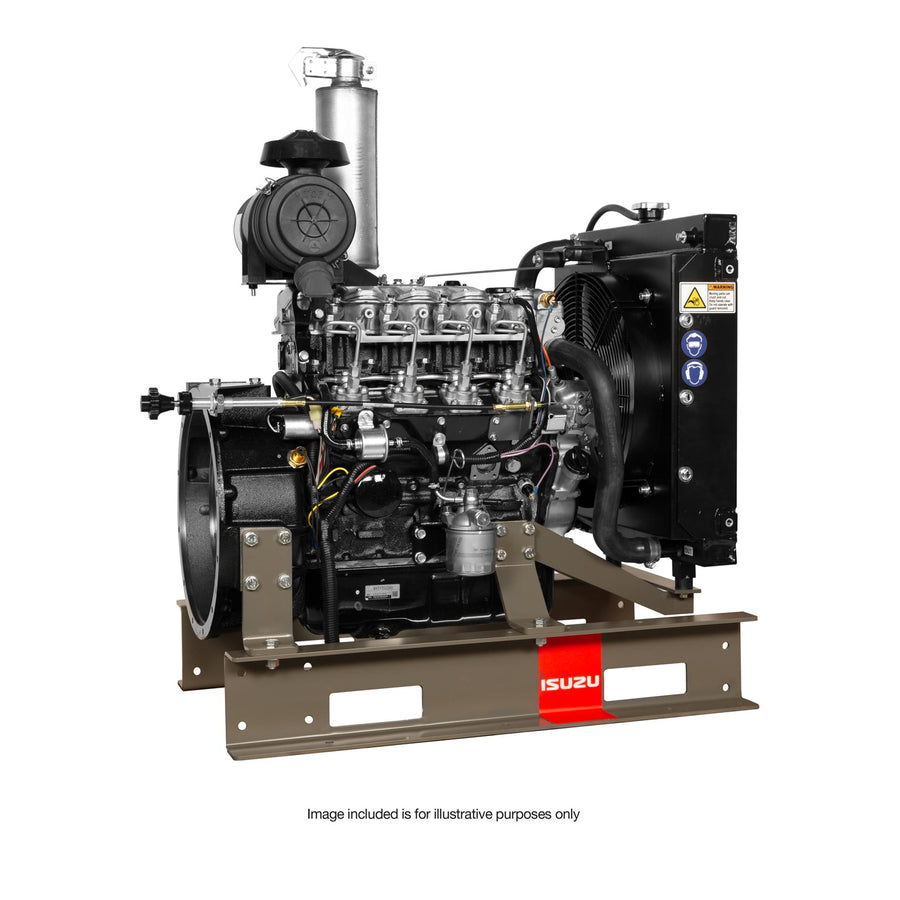

Isuzu diesel engine on a white background

3CA1-AZP01

Isuzu 3CA1 Power Unit Diesel Engine

Suits: Light to medium-duty fixed or variable-speed stationary and mobile applications

POA

Product Details

PRODUCT INFORMATION

Isuzu 3CA1 Power Unit - Efficient Diesel Engine for Industrial & Agricultural Applications

The Isuzu 3CA1 Power Unit is a reliable and fuel-efficient diesel engine designed for a wide range of light to medium industrial, agricultural, and commercial applications. With its compact footprint and robust construction, it delivers dependable performance and steady power output in demanding conditions.

Engineered to Isuzu’s proven standards, the 3CA1 offers low fuel consumption, simple maintenance, and long service life. Its naturally aspirated design and straightforward mechanical systems make it a practical and cost-effective power solution for daily operations.

The 3CA1 is well suited to generators, irrigation pumps, light construction equipment, and custom-built machinery, where consistent performance and reliability are essential.

SPECIFICATIONS

Type: Vertical water-cooled 4-cycle Diesel
Model (Manufacturer): 3CA1-AZP01 (Isuzu)
Emission Spec. Reference: Stage-V
Max. Rated Output: 16.3 kW (21.9 hp) @ 3600 RPM
Continuous Output: 13.9 kW (18.6 hp) @ 3600 RPM
Max. Torque: 48.5 Nm @ 2600 RPM
Displacement: 0.854 L
Combustion System: In-direct Injection (Naturally Aspirated)
O/A Dimensions: 524 (L) x 457 (W) x 576 mm (H)
Dry Weight: 98 kg
Fuel Consumption: 5.6* L/h @ 100% load
(*Based on diesel fuel with a specific gravity of 0.835 kg/m³ at 15°C. Actual value may vary.)

Key Benefits:

Compact & Versatile Design: Compact and lightweight for easy integration into a wide range of equipment and installations.
Fuel Efficient & Low Noise: Naturally aspirated indirect injection system provides excellent fuel efficiency with quiet operation.
Reliable Cooling Performance: Water-cooled system with heavy-duty aluminium radiator options supports operation in demanding environments and higher ambient temperatures.
Simple & Durable Operation: Mechanical fuel system ensures straightforward operation, reliability, and ease of servicing in the field.
Flexible Configuration Options: Available in Starter (STR), Economy (ECY), and Premium (PRM) configurations with options for controllers, PTOs, mounting skids, and accessories.
Advanced Monitoring & Protection: Optional Murphy controllers provide engine monitoring, diagnostics, and protection features for increased operational safety.

Typical Applications:
The Isuzu 3CA1 Power Unit is ideally suited for:

Portable and standby generators
Irrigation and water pumps
Light construction equipment
Agricultural machinery
Custom OEM and machinery builds

For more information
Download full specifications and Power Unit configurations here

VEHICLE INFORMATION

N/A

DISCLAIMER

The Isuzu 3CA1 Power Unit is supplied as a standalone diesel engine and is intended for use in light to medium industrial, agricultural, and commercial applications. Specifications, compatibility, and performance may vary depending on installation, operating conditions, and supporting components.

It is the responsibility of the purchaser to ensure the engine is suitable for the intended application and is installed, operated, and maintained by qualified personnel in accordance with manufacturer guidelines and local regulations.

While every effort has been made to ensure the accuracy of product information, specifications are subject to change without notice. Images are for illustrative purposes only and may not represent the exact product supplied.

No liability is accepted for any damage, loss, or injury resulting from improper installation, use, or modification of this product.
