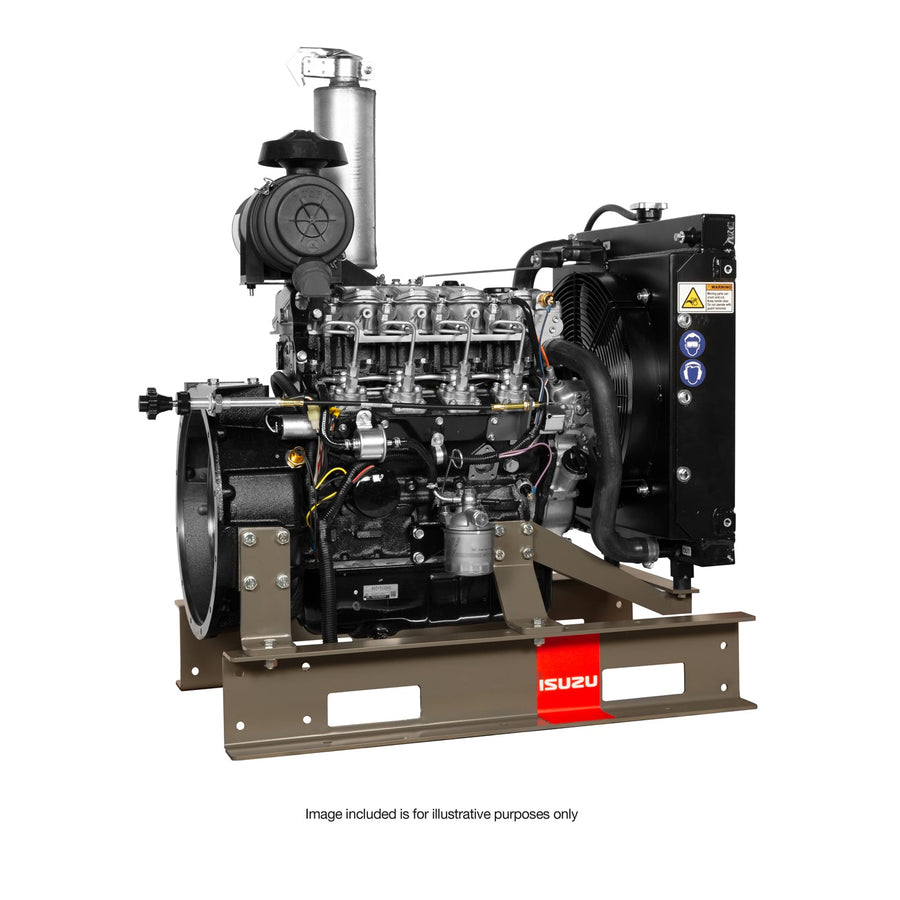

Isuzu diesel engine on a white background

2CA1-AZP01

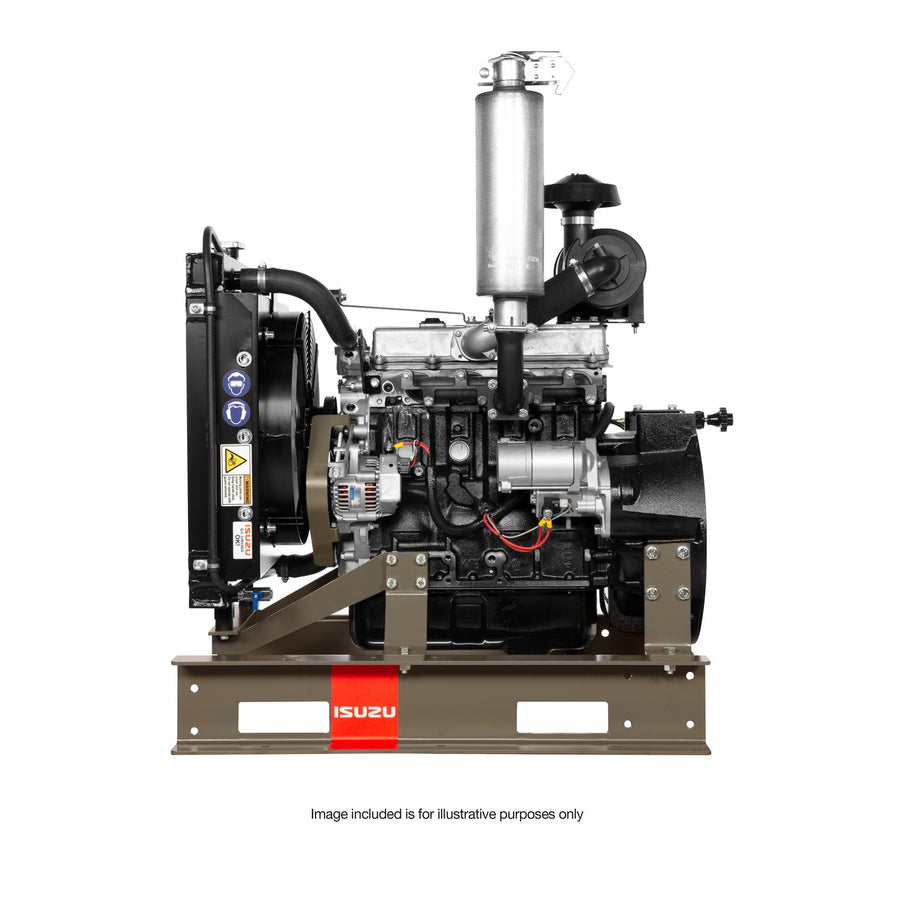

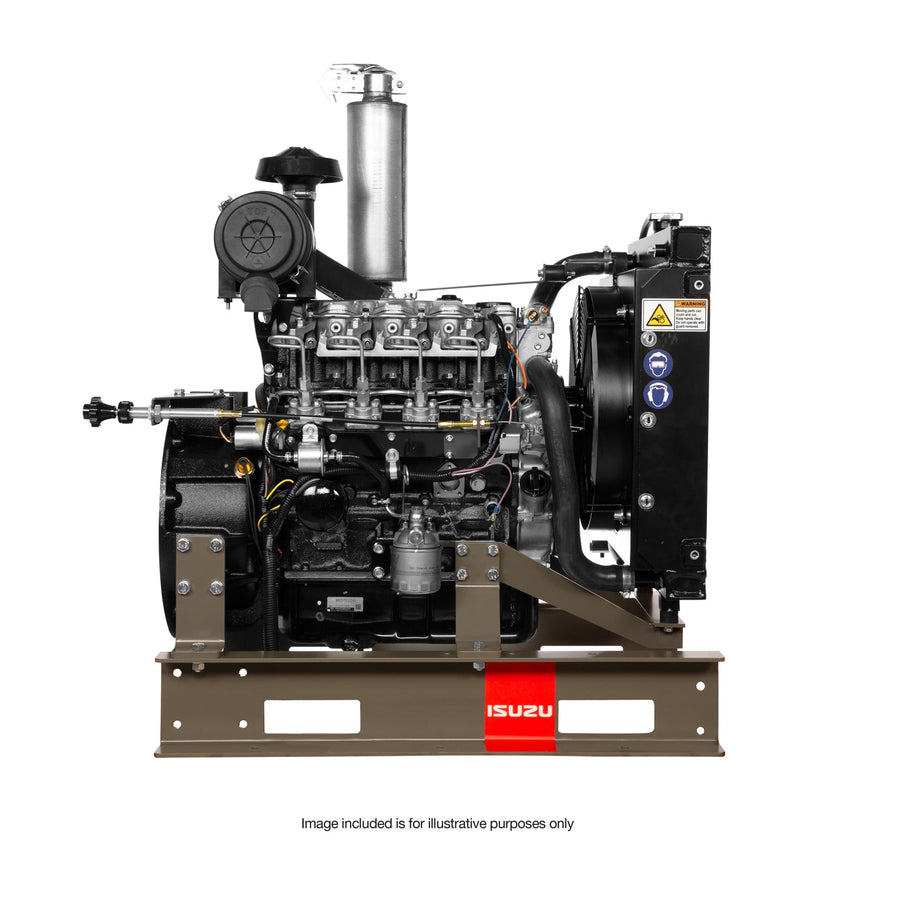

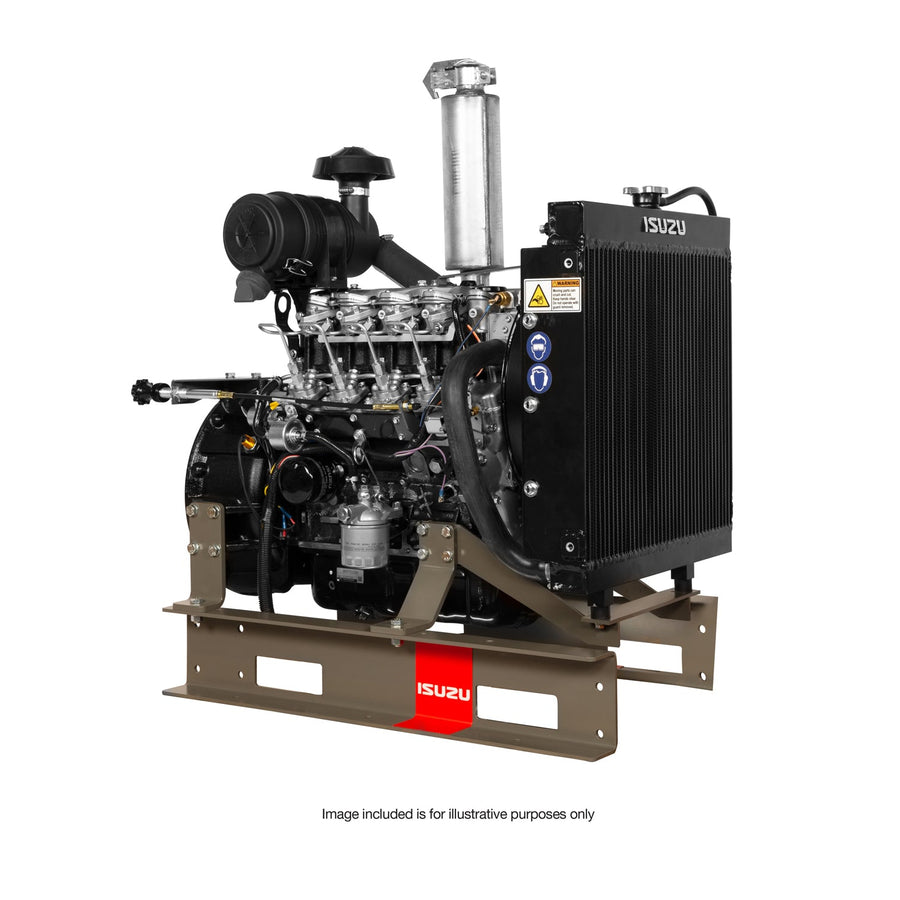

Isuzu 2CA1 Power Unit Diesel Engine

Suits: Light-duty fixed or variable-speed stationary and mobile applications

POA

Product Details

PRODUCT INFORMATION

Isuzu 2CA1 Power Unit - Reliable Diesel Engine for Industrial & Agricultural Use

The Isuzu 2CA1 Power Unit is a dependable and fuel-efficient diesel engine designed for a wide range of industrial, agricultural, and commercial uses. Known for its compact design and robust construction, this engine provides consistent performance and reliable power in demanding working conditions.

Built with Isuzu’s proven engineering standards, the 2CA1 delivers excellent fuel economy, simple maintenance, and long-lasting durability. Its straightforward design makes it a practical choice for operators seeking a reliable power source with minimal downtime.

The 2CA1 power unit is well-suited for applications including generators, irrigation pumps, construction machinery, and custom-built equipment, where steady performance and efficiency are essential.

Whether used for everyday operational tasks or heavy-duty applications, the Isuzu 2CA1 Power Unit offers a cost-effective and reliable solution you can trust.

SPECIFICATIONS

Type: Vertical water-cooled 4-cycle Diesel
Model (Manufacturer): 2CA1-AZP01 (Isuzu)
Emission Spec. Reference: Stage-V
Max. Rated Output: 9.8 kW (13.1 hp) @ 3600 RPM
Continuous Output: 8.3 kW (11.2 hp) @ 3600 RPM
Max. Torque: 30.1 Nm @ 2600 RPM
Displacement: 0.57 L
Combustion System: In-direct Injection (Naturally Aspirated)
O/A Dimensions: 444 (L) x 457 (W) x 533 mm (H)
Dry Weight: 84 kg
Fuel Consumption: 3.8* L/h @ 100% load
(*Based on diesel fuel with a specific gravity of 0.835 kg/m³ at 15°C. Actual value may vary.)

Key Benefits:

Compact & Efficient Design: Lightweight and space-saving engine design, ideal for small to medium-duty applications where size and efficiency matter.
Low Fuel Consumption & Noise: Naturally aspirated indirect injection system delivers quiet operation with excellent fuel economy.
Reliable Cooling Performance: Water-cooled system with heavy-duty aluminium radiator options ensures dependable operation, even in elevated ambient temperatures.
Flexible Configuration Options: Available in multiple configurations (STR, ECY, PRM) with options for controllers, mounting skids, PTOs, and auxiliary accessories.
Engine Protection & Control: Optional Murphy controllers provide monitoring, diagnostics, and engine protection features for enhanced operational safety.

Typical Applications:
The Isuzu 2CA1 Power Unit is ideally suited for:

Portable and standby generators
Irrigation and water pumps
Light construction and agricultural machinery
Custom equipment and OEM builds

For more information
Download full specifications and Power Unit configurations here

VEHICLE INFORMATION

N/A

DISCLAIMER

The Isuzu 2CA1 Power Unit is supplied as a standalone diesel engine and is intended for use in light industrial, agricultural, and commercial applications. Specifications, compatibility, and performance may vary depending on installation, operating conditions, and supporting components.

It is the responsibility of the purchaser to ensure the engine is suitable for the intended application and is installed, operated, and maintained by qualified personnel in accordance with manufacturer guidelines and local regulations.

While every effort has been made to ensure the accuracy of product information, specifications are subject to change without notice. Images are for illustrative purposes only and may not represent the exact product supplied.

No liability is accepted for any damage, loss, or injury resulting from improper installation, use, or modification of this product.
